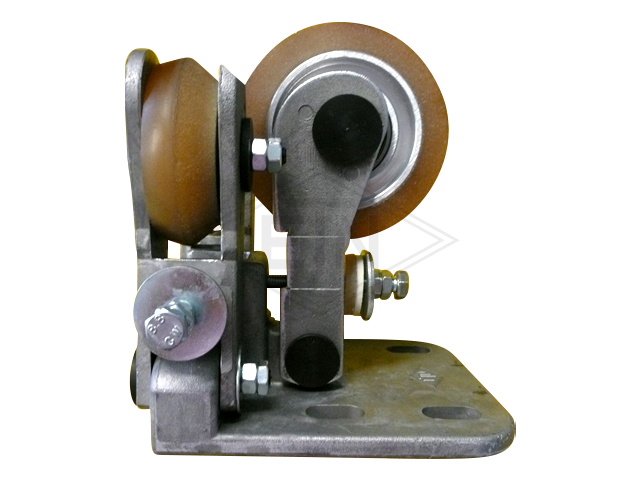

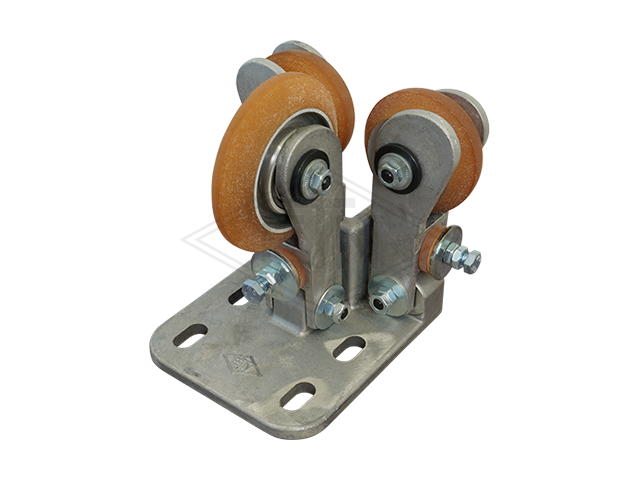

Spring-loaded roller guide RFGK 1-C, housing spec. aluminium, 2 x rollers ø 75/20 x 25 mm, one side chamfered, 1 x roller ø 100/20 x 25 mm, on both sides conical (for rail 45 x 45 x 5 mm), ball bea...
In stock
Ordered before 16:00 on business days, shipped the same day
Product description
Spring-loaded roller guide RFGK 1-C, housing spec. aluminium, 2 x rollers ø 75/20 x 25 mm, one side chamfered, 1 x roller ø 100/20 x 25 mm, on both sides conical (for rail 45 x 45 x 5 mm), ball bearings SKF/FAG, rollers damped, coverings VU 80° Note: the spring elements of the center distance rollers are based in the role of guides to. Collision of the lateral Guides is prevented by the clamping plates.
Technical specifications
| Coating VU (Shore A) Vulkollan | 80° |
|---|---|
| Diameter x width of gauge roll | 100 x 25 mm |
| Diameter x width of the guide rollers | 75 x 25 mm |
| Identical in construction to the manufacturer | ETN ® |
| Rail width | 5 mm |
