Spring-loaded rolgeleider RFGK 1-A, housing spec. aluminium 2 x rollen ø 75/20 x 25 mm, one side chamfered, 1 x rol ø 100/20 x 25 mm, on both sides conical (voor rail 50 x 50 x 5 mm), kogel bea... Spring-loaded rolgeleider RFGK 1-A, housing spec. aluminium 2 x rollen ø 75/20 x 25 mm, one side chamfered, 1 x rol ø 100/20 x 25 mm, on both sides conical (voor rail 50 x 50 x 5 mm), kogel bea... Spring-loaded rolgeleider RFGK 1-A, housing spec. aluminium 2 x rollen ø 75/20 x 25 mm, one side chamfered, 1 x rol ø 100/20 x 25 mm, on both sides conical (voor rail 50 x 50 x 5 mm), kogel bea... Spring-loaded rolgeleider RFGK 1-A, housing spec. aluminium 2 x rollen ø 75/20 x 25 mm, one side chamfered, 1 x rol ø 100/20 x 25 mm, on both sides conical (voor rail 50 x 50 x 5 mm), kogel bea... Spring-loaded rolgeleider RFGK 1-A, housing spec. aluminium 2 x rollen ø 75/20 x 25 mm, one side chamfered, 1 x rol ø 100/20 x 25 mm, on both sides conical (voor rail 50 x 50 x 5 mm), kogel bea...
ETN

Spring-loaded roller guide RFGK 1-A, housing spec. aluminium, 2 x rollers ø 75/20 x 25 mm, one side chamfered, 1 x roller ø 100/20 x 25 mm, on both sides conical (for rail 50 x 50 x 5 mm), ball bea...

Article number
ETN-300090-A
Unit
piece
In stock Ordered before 16:00 on business days, shipped the same day

Log in to see your net prices.

Log in

Product description

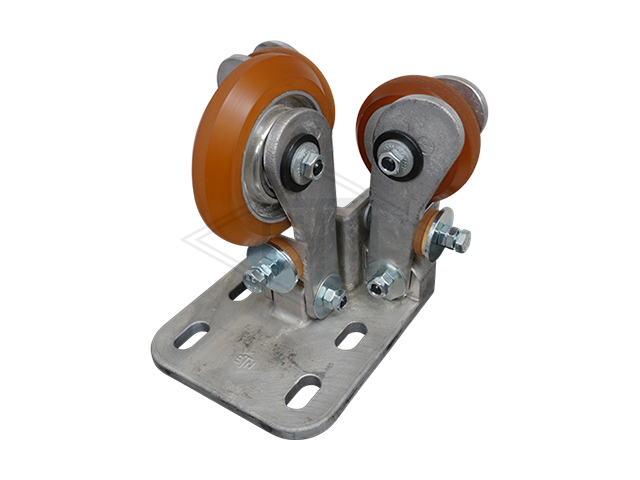

Spring-loaded roller guide RFGK 1-A, housing spec. aluminium, 2 x rollers ø 75/20 x 25 mm, one side chamfered, 1 x roller ø 100/20 x 25 mm, on both sides conical (for rail 50 x 50 x 5 mm), ball bearings SKF/FAG, rollers damped, coverings VU 80° Note: the spring elements of the center distance rollers are based in the role of guides to. Collision of the lateral Guides is prevented by the clamping plates.
Technical specifications
Coating VU (Shore A) Vulkollan 80°

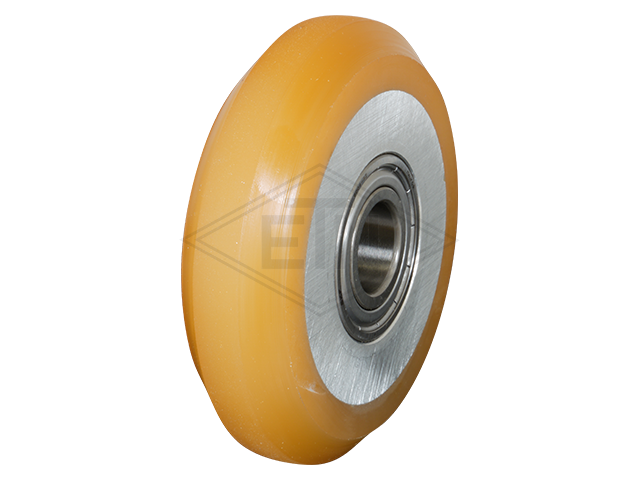

Diameter x width of gauge roll 100 x 25 mm

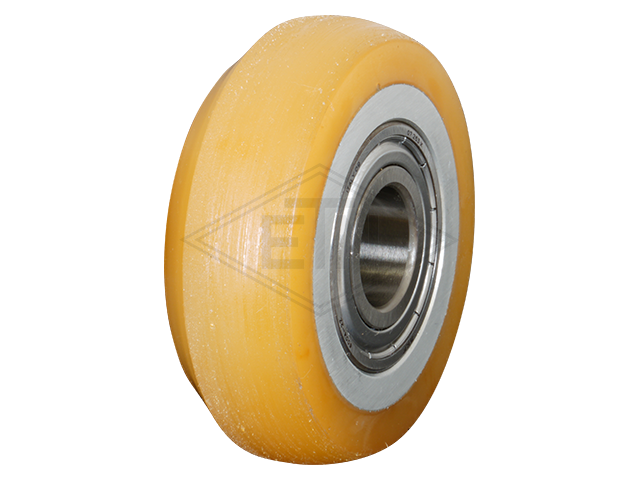

Diameter x width of the guide rollers 75 x 25 mm
Identical in construction to the manufacturer ETN ®
Rail width 5-16 mm
