Hydraulic buffer H14, ø 40 x 275 mm, height 715 mm, hydraulic system with switch for lifts up to 2,0 m/s nominal speed, according to EN 81 - 20/50 : 2014, EN 81 - 1/2 1998+A3; 2009 with operation...

Article number
ETN-320403-A
Unit
piece
In stock Ordered before 16:00 on business days, shipped the same day

Log in to see your net prices.

Log in

Product description

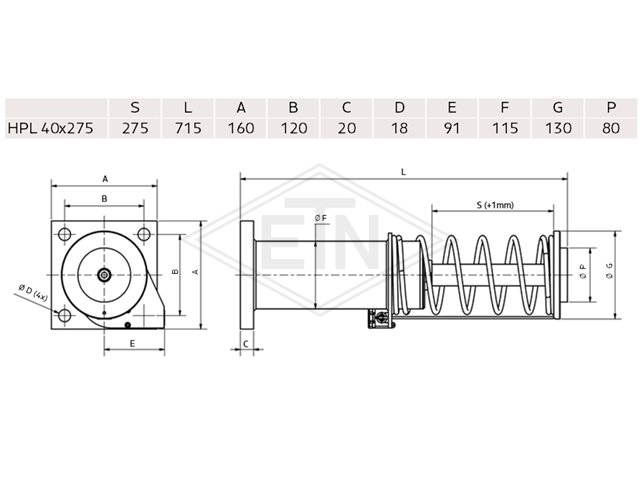

Hydraulic buffer H14, ø 40 x 275 mm, height 715 mm, hydraulic system with switch for lifts up to 2,0 m/s nominal speed, according to EN 81 - 20/50 : 2014, EN 81 - 1/2 1998+A3; 2009 with operation bar confirmal to AR 2014/33/EU (valid from 20.04.2016) Load range 450 kg - 3.500 kg
Technical specifications
Identical in construction to the manufacturer Henning
Piston diameter 40 mm
Piston stroke 275 mm
Tested nominal speeds 1,00 m/s , 1,30 m/s , 1,60 m/s , 2,00 m/s
Load range 450 kg - 3.500 kg
Standard EN 81-20/50; EN 81-1/2
